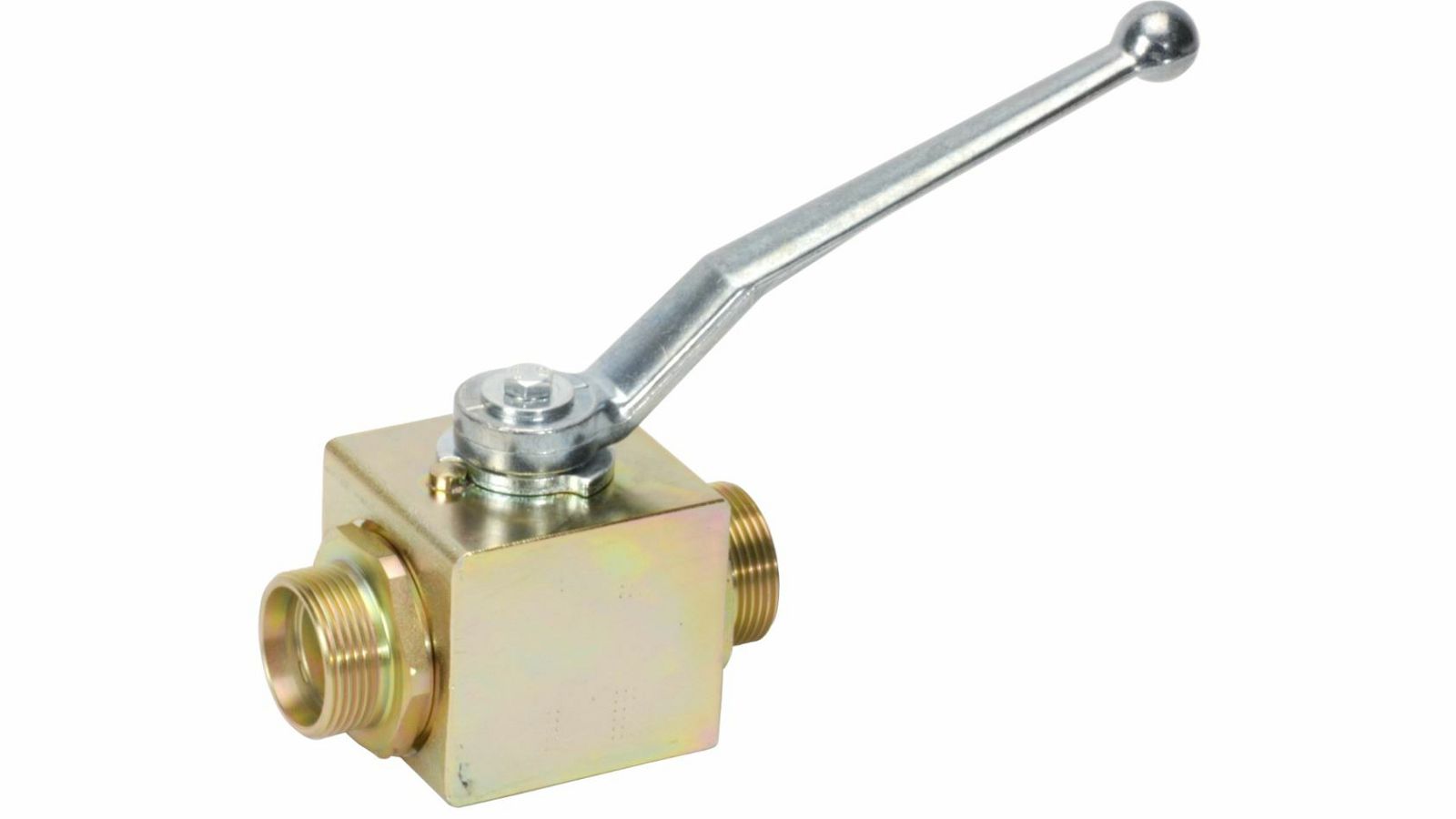

2/2 WAY VENTIL, 28L, M36x2 , FI-28

BKH28L2511131
BKH-28L
62300010900

-------------

Thread external A metric
M 36x2

Thread external B metric
M 36x2

Ball bore form
channel

Mounting bore (mm)
without

Width across flats square (mm)
14

Width across flats line connection (mm)
46

Type
2/2-way

Production series
light

Weight (kg)
1,86

Surface
galvanized

For FI tube A (mm)
28

For FI tube B (mm)
28

Tube AD series
28 L

Material
steel

Brand
Pister

Max. operating pressure (bar)
350

Length (mm)
49,5

Nominal diameter (mm)
25
