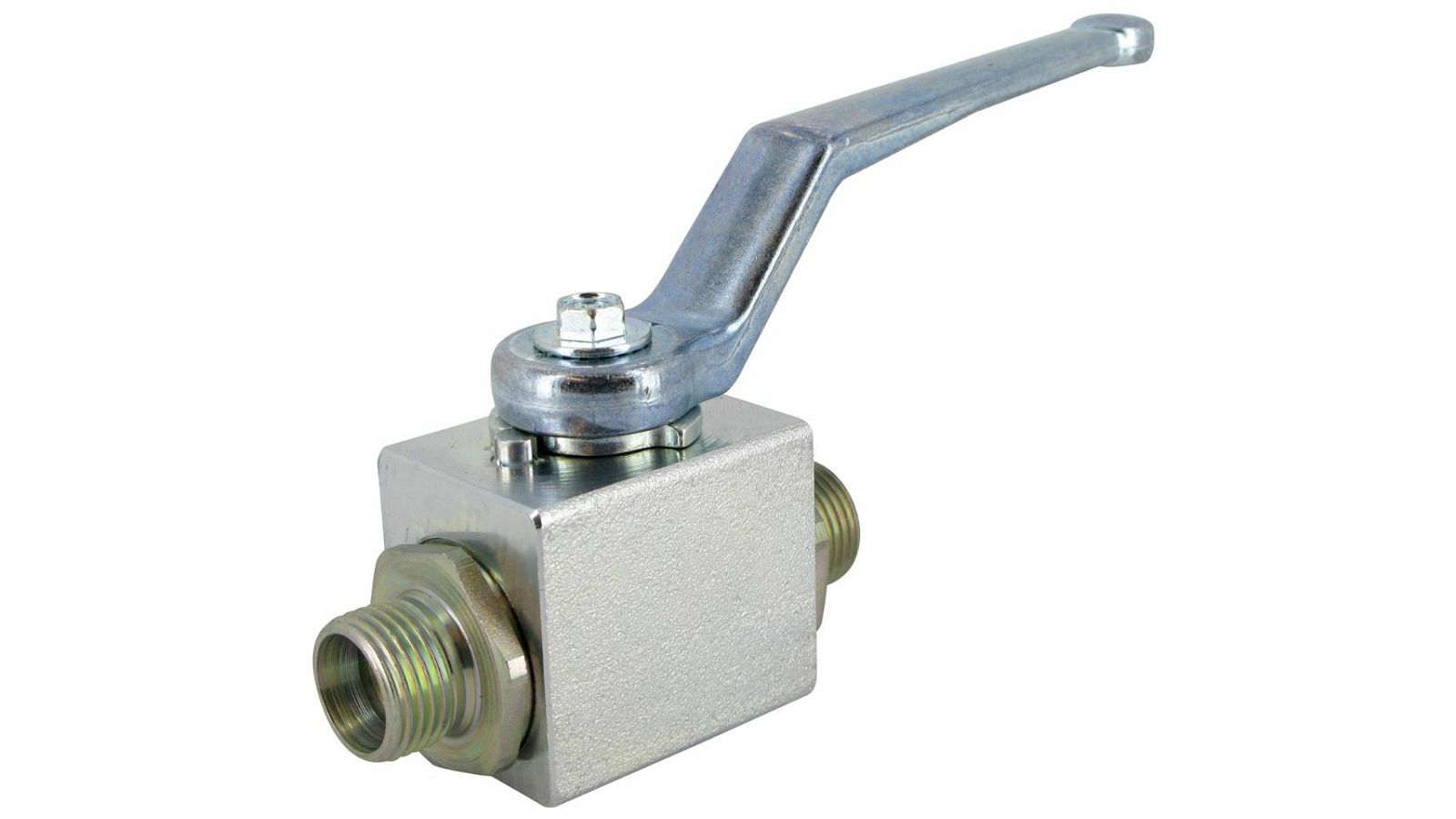

2/2 WAY VENTIL, 18L, VISOKI PRITISAK

BKH18L1611231
62300010700

----------

Length (mm)
43

Thread external A metric
M 26x1,5

Thread external B metric
M 26x1,5

Nominal diameter (mm)
16

Production series
light

For FI tube A (mm)
18

For FI tube B (mm)
18

Surface
galvanized

Type
2/2-way

Ball bore form
channel

Mounting bore (mm)
without

Width across flats square (mm)
12

Width across flats line connection (mm)
32

Material
steel

Tube AD series
18 L

Weight (kg)
0,77

Brand
Pister

Max. operating pressure (bar)
500
