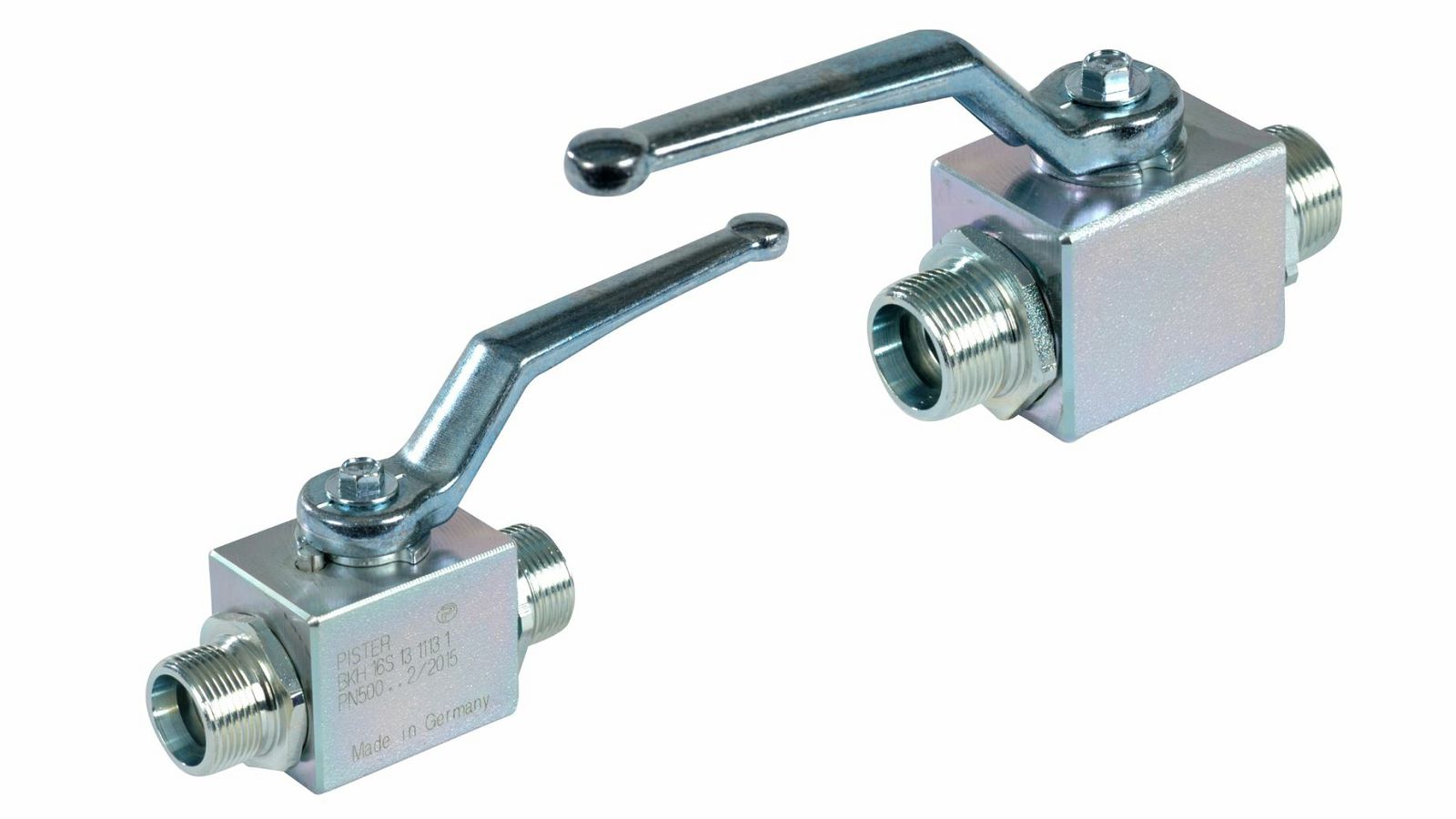

2/2 WAY VENTIL, 16S, M24x1,5/FI16S

BKH16S1311131
BKH-16S
62300011400

------------

Length (mm)
33,5

Thread external A metric
M 24x1,5

Thread external B metric
M 24x1,5

Nominal diameter (mm)
13

Production series
heavy

For FI tube A (mm)
16

For FI tube B (mm)
16

Surface
galvanized

Type
2/2-way

Ball bore form
channel

Mounting bore (mm)
without

Width across flats square (mm)
9

Width across flats line connection (mm)
30

Material
steel

Tube AD series
16 S

Weight (kg)
1,3

Brand
Pister

Max. operating pressure (bar)
500
