22.1545.89.0000.0Z
2215458900000Z
22.1545.89.00.00
58400149500
----------

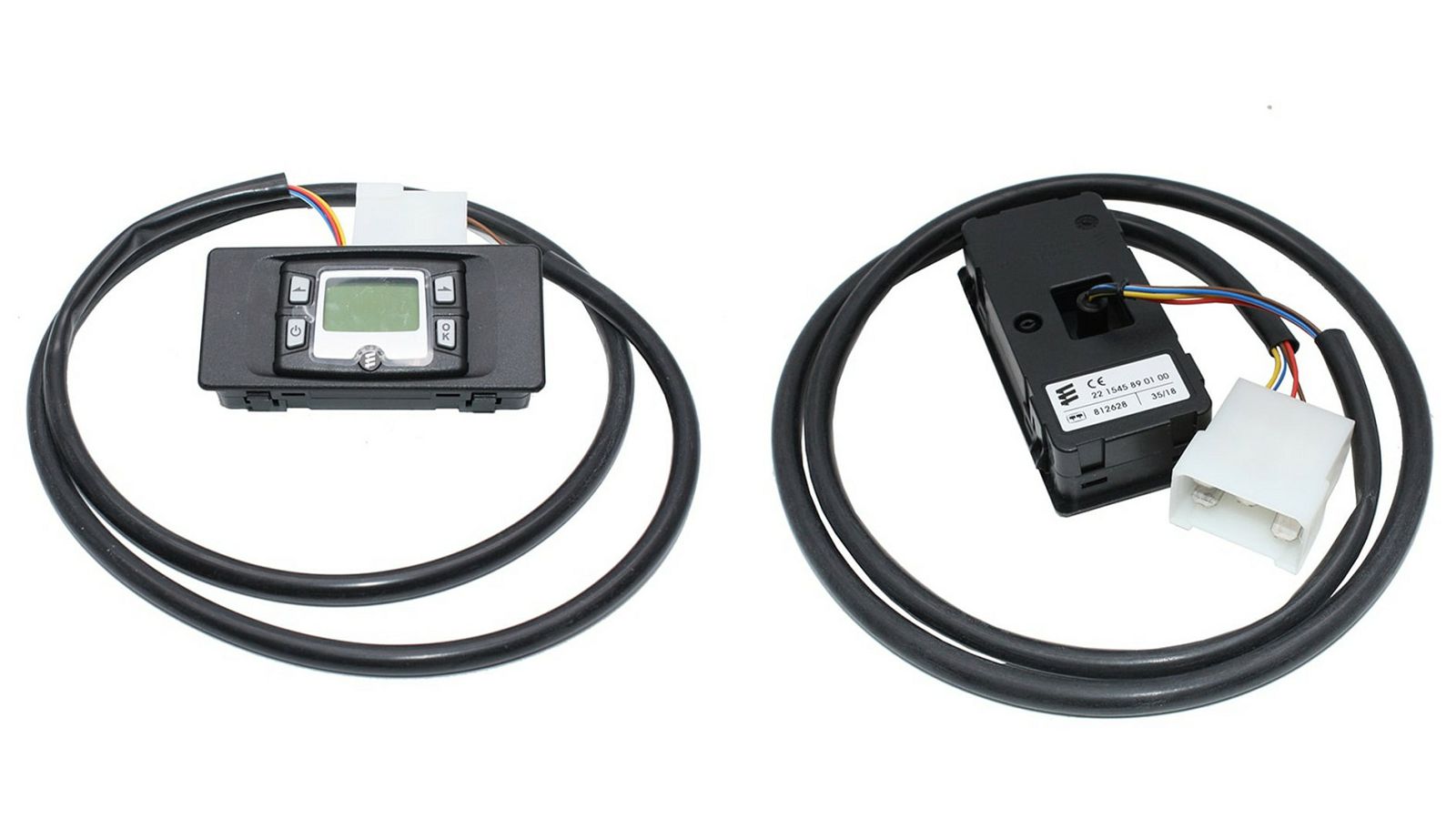

The diagnostic clock is used if no EasyStart Timer or Remoteplus control element and no EasyStart Select Timer or Remoteplus Call is installed and if an EDiTH Basic and PC are not available.
For diagnosing the Hydronic 2 Economy heater.
Usability of the diagnostic unit:
The diagnostic unit can be used together with the corresponding adapter cable for the following heaters:
Airtronic / Airtronic M / Airtronic L - Cable Part No: 22 1000 31 86 00
B / D 1 L Cc, B / D 3 L Cc, B / D 3 L Pc - Cable Part No: 22 1000 30 69 00
B / D 1 L C, B / D 3 L C, B / D 3 L P, B / D 5 L C / 8 L – No adapter cable required
Hydronic - Cable Part No: 22 1000 31 63 00
Hydronic II / Hydronic II C - Cable Part No: 22 1000 33 78 00
D 9 W / Hydronic - Cable Part No: 10 22 1000 31 83 00
Hydronic 10, control box with integrated connector - Cable Part No: 22 1000 32 52 00
Hydronic M II - Cable Part No: 22 1000 33 44 00
Hydronic 16 / 24 / 30 / 35 - Cable Part No: 22 1000 31 66 00
