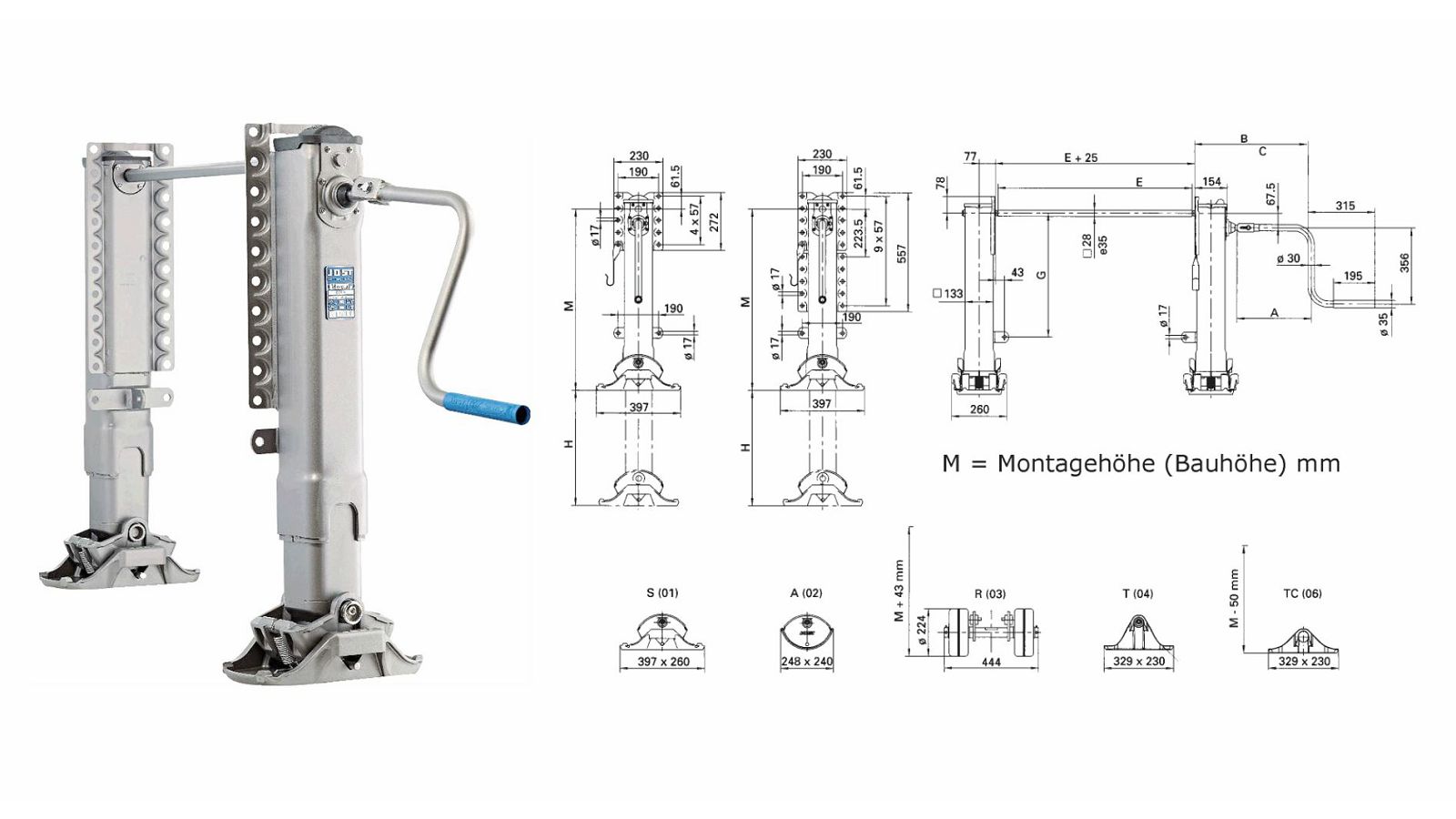

NOGARI SCHMITZ module B, Jost Form S, MODUL B0602-0100 - JOST

B0603-910103
270985SCHMITZ
270990SCHMITZ
270989SCHMITZ
ME302S04044
E300S19000
E200S19000
B0603-910103
B0602-01R
B0602-01L
B0602-0100
ME302S04044
E300S19000
E200S19000
B0603-910103
B0602-01R
B0602-01L
B0602-0100
B0603-0000L , B0603-000000L - NOGAR LIJEVI
Rockinger 1000408 - NOGAR LIJEVI
53100024600

------------

scope of delivery: two supports, two feet, crank and connecting shaft


SCHMITZ CARGOBULL BOX
SCHMITZ CARGOBULL FLATBED/TARPAULIN

Brand
Jost

Construction form foot
Jost Form S

Hoisting capacity per set (t)
24

Length connecting shaft (mm)
1470

Material housing
steel

Max. height (mm)
1083,5

Min. height (mm)
733,5

Mounting
rigid

Mounting height (mm)
650

Production series
module B

Setting range (mm)
ohne

Stroke (mm)
350

Support load per set (t)
50

Usage vehicle
semitrailer

Version screw plate
double plate

Weight (kg)
95,6
