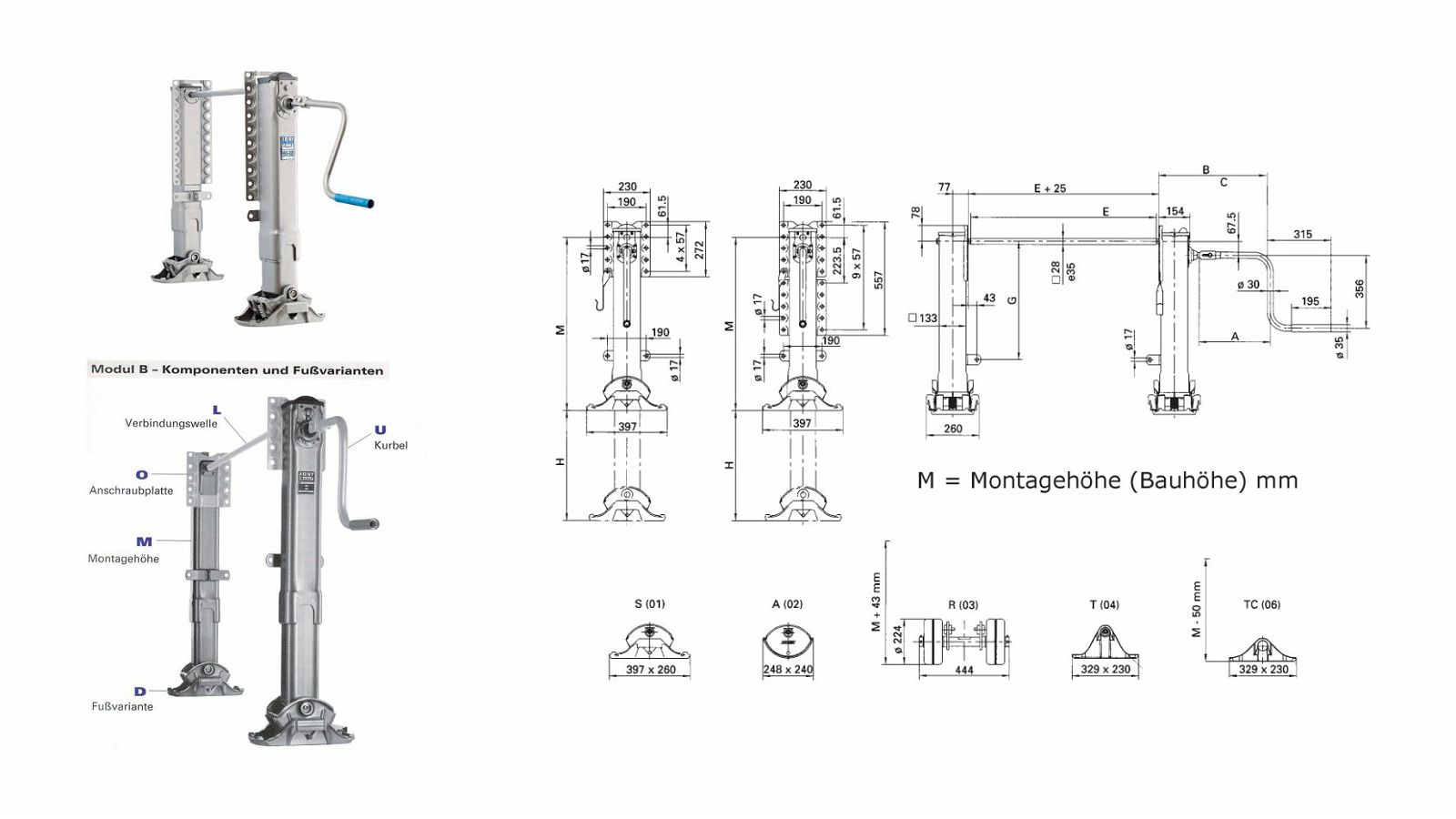

NOGARI SCHMITZ module B, Jost Form S - L CONECTING SHAFT-1470mm, MIN HEIGHT-783,5mm, MAX HEIGHT 1183,5mm

B0503-910103
B05020100
1238699
1312224 - LIJEVI NOGAR
1312225 - DESNI NOGAR
B0502-010000
B0502-0100R
B0501-0000L
B0501-0000R
B0501-01

NOGE POSTOLJE - JSD01

Length connecting shaft (mm): 1470
Support load per set (t); 50
Hoisting capacity per set (t): 24
Max. height (mm): 1183.5
Min. height (mm): 783.5
Mounting height(mm): 700
Version screw plate: double plate
Production series: module B
Weight (kg): 100.0
Usage vehicle: semitrailer
Ref. no.: Jost B0503-910103
Construction foot: Jost Form S
Stroke (mm): 400.0
Material housing: steel
Setting range (mm): without
Mounting: rigid

ZA: SCHMITZ CARGOBULL FLATBED/TARPAULIN
nogar schmitz

Ref.no.Schmitz
271160
Ref.no.Schmitz
1312225
Ref.no.Schmitz
1312224
Ref.no.Schmitz
1238699
Ref.no.Schmitz
1173223
Ref.no.Schmitz
1173222
53100002000
