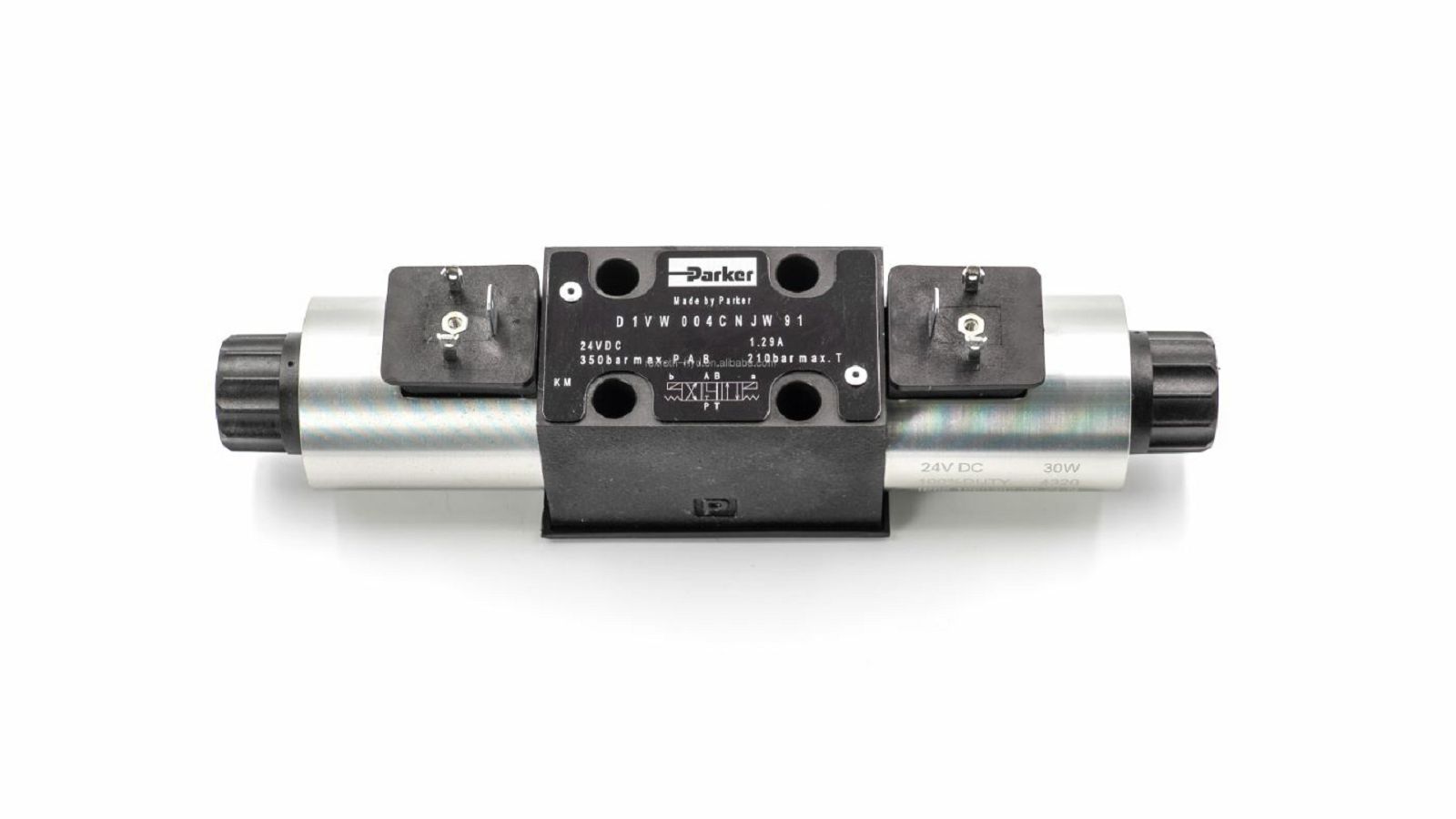

KONTROLNI VENTIL CETOP 3 - PARKER

D1VW004CNJW
61100124000

Width (mm)
46

Weight (kg)
2,3

Height (mm)
69

Length (mm)
226

Power (W)
30

Brand
Parker

Voltage (V)
24

Max. flow rate (l/min)
80

Material
steel

Degree of protection
IP 65

Standard ISO
4401

Surface
nitrided

Including magnetic coil
yes

Max. operating pressure (bar)
350

Electrical connection
DIN 43650 Form A

Electrical connection
EN 175301 - 803 mold A

Max. operating pressure return flow (bar)
210

Status zero position
P closed A and B after T open

Switch function
4/3-way

Nominal size
6

Type
03
