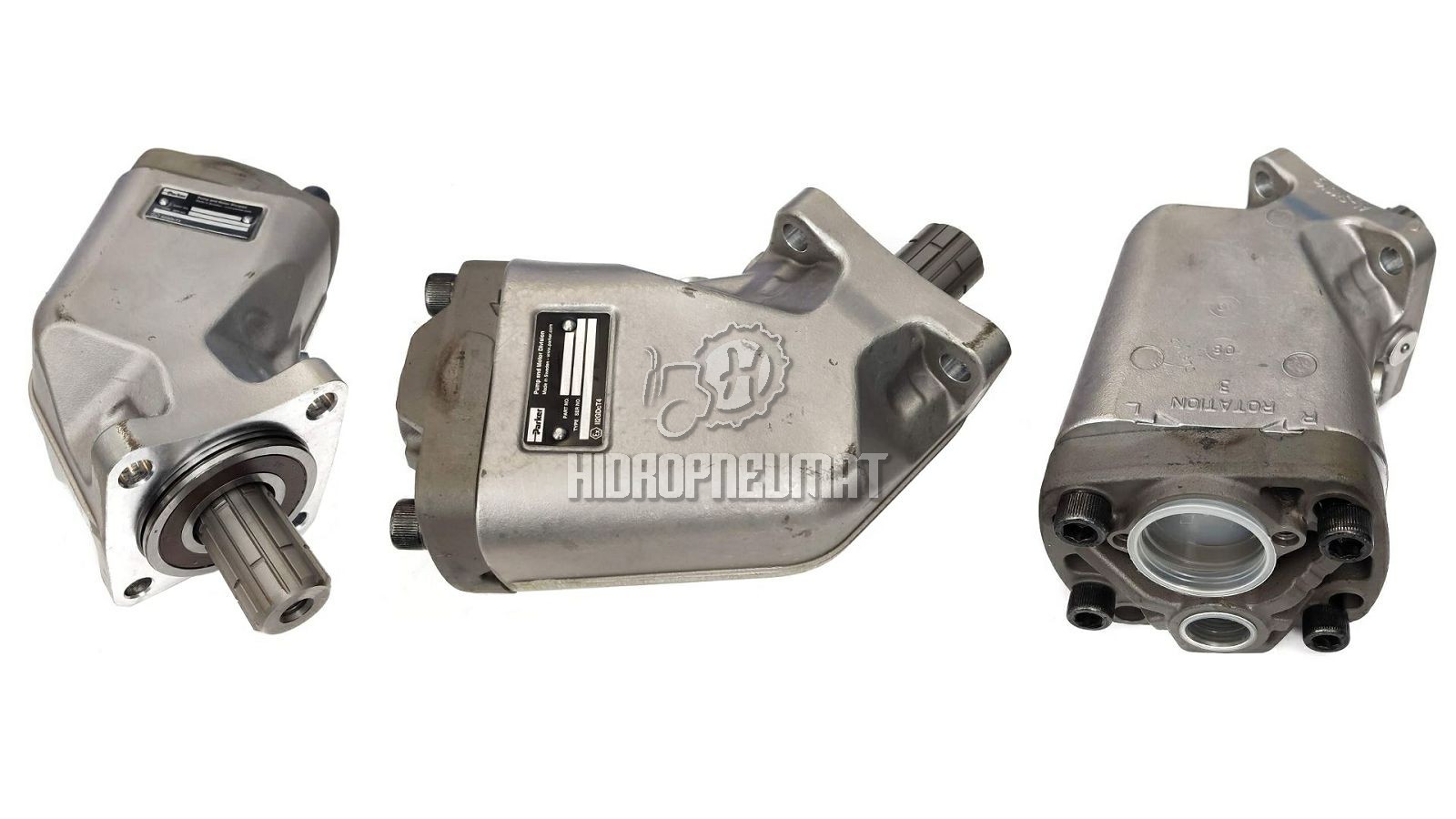

HIDRAULIČNA PUMPA AXIALNA 40L, DESNA KUTNA - PARKER (SCH)

F01041R
F1-041-R
3781040
F1-041-R
41812r
F01041L, F01-041-L OKRENUTI
F01041R
F01-041-R
F1-41-R
60100110473
HDS47DISO
F01041R
41812 SCHWARZMULLER

-----------------

Max. revolution (rpm)
2550

Direction of rotation changeable
yes

Delivery rate (cm3/r)
40,9

Direction of rotation
right

Standard drive DIN
5462

Pressure connection
G 3/4 inch internal thread

Type
F1-41-R

Assembly flange drive
4-hole 80x80 mm

Weight (kg)
8,82

Operating pressure (bar)
350

Brand
Parker

Suction connection
plugged in

Max. pressure (bar)
400

Material housing
aluminum

Construction
inclined axis

Specification drive
shaft 8x32x36
